Peak performance

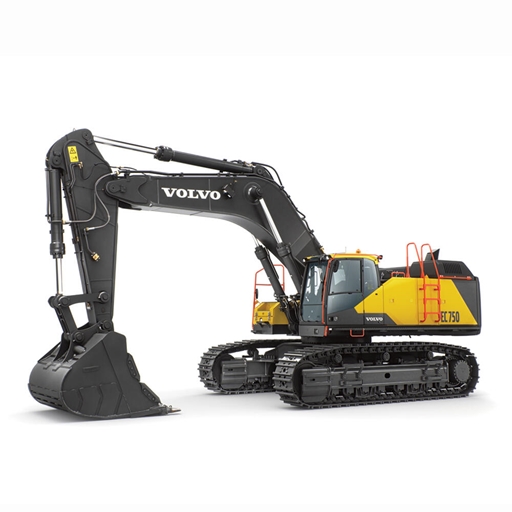

The overall quality of EC750 has been upgraded again. It is equipped with a technologically lean and powerful D16 engine that fully complies with the National IV standard. Inheriting the successful advantages of the previous generation, fuel efficiency has been improved by about 5% and productivity has been increased by about 15%. EC750 has high productivity, efficient and reliable operation, and can easily cope with more difficult tasks
 Boom and Arm: With a reinforced, heavy-duty boom and arm made of high-strength tensile steel, you can be sure of maximum machine uptime and performance, no matter the application. |
 Higher fuel efficiency: Thanks to a series of efficiency-enhancing technologies, fuel efficiency is improved by approximately 5%. |
 Powerful Volvo engine: The Volvo D16 engine meets the National IV standard and has been proven worldwide for nearly 10 years. It has an 11% increase in power compared to the previous generation. |
| Working weight | 75,200 Kg |
|---|---|
| Total power | 393 kW |
| Maximum power speed | 1,800 rpm |
| Bucket capacity | 3.3 - 5.16 m³ |
| Lifting capacity at chassis | 30,760 Kg |
| ...Lifting distance/height | 6 / 1.5 m |
| Maximum mining scope | 11,460 mm |
| Maximum digging depth | 7,210 mm |
| Bucket digging force, SAE J1179 (normal) | 323 kN |
| Bucket digging force, SAE J1179 (boost) | 342 kN |
| Arm digging force, SAE J1179 (normal) | 311 kN |
| Arm digging force, SAE J1179 (boost) | 311 kN |
| Arm digging force, SAE J1179 (boost) | 329 kN |
| Total width | 4,285 mm |
| Tail turning radius | 4,140 mm |
